Soundproof Windows

Shandong Duoping New Materials Co., Ltd. is a professional R&D, production, and supply provider of high-end soundproof windows. With years of experience in the building materials and window industries, the company utilizes composite soundproof glass and sealing noise-reduction technologies to create soundproof windows that offer high efficiency in sound insulation, waterproof sealing, and durability. These windows are widely suitable for residential buildings near busy streets, office buildings, hotels, laboratories, and other noise-sensitive environments. They are sold both domestically and internationally. We sincerely look forward to partnering with you as your trusted soundproof window supplier in China.

Technical Parameters

Parameter Category	Specific Indicators	Reference Value	Testing Standards
Frame Material	Aluminum Alloy Material and Specifications	6063-T5 Aluminum Alloy (Thickness 1.6-2.2mm)	GB/T 5237
Glass Configuration	Soundproof Glass Parameters	Laminated Hollow Soundproof Glass 5+1.14PVB+5+20A+5mm	GB 15763.2, GB/T 8485
Core Performance	Sound Insulation / Sealing Level	≥40dB / IP54 Waterproof Level	GB/T 8484, GB/T 50121
Structural Performance	Impact Resistance / Service Life	≥15J Impact Without Damage / ≥20 Years of Service Life	QB/T 3893, GB/T 9962

Product Features and Applications

The core advantage of soundproof windows lies in their high-efficiency sound insulation and noise reduction performance. Using a laminated hollow composite glass structure, the PVB laminate layer effectively absorbs mid- and low-frequency noise, while the air gap blocks high-frequency noise. This dual protection results in a sound insulation of ≥40dB, significantly reducing noise from traffic, construction, crowds, and other disturbances, creating a quiet and comfortable indoor environment. The frame is equipped with multiple layers of soundproof sealing strips to enhance the frame's sealing and prevent noise from entering through gaps.

The windows are ideal for various noise-sensitive environments, particularly residential buildings facing busy streets, buildings near highways or airports, office buildings, hotel rooms, laboratories, recording studios, etc. They meet both residential quietness requirements and the stringent noise control standards of professional environments, making them the preferred choice for enhancing space comfort and professionalism.

Production Details

The production process adheres to strict quality control standards for soundproof windows. Aluminum alloy profiles are processed with high-precision CNC, and the frame is designed with a soundproof cavity, filled with soundproof cotton to further enhance noise reduction. The glass is high-quality laminated hollow glass, with an even thickness of the PVB laminate layer, tightly bonded without air bubbles or delamination. The impact resistance is excellent, while also providing anti-theft benefits. The frame-to-sash connection uses a stepped sealing structure, paired with EPDM soundproof sealing strips for a seamless, tight seal.

The hardware components are made of noise-dampening, wear-resistant materials, ensuring smooth and quiet operation without any additional noise from hardware friction. The drainage holes are designed to be hidden, with a soundproof cover to ensure smooth drainage and prevent noise from entering through the drainage system. The surface treatment includes powder coating or anodizing, which enhances the coating's adhesion, weather resistance, corrosion resistance, and combines both aesthetics and durability.

Core Advantages Summary

• High-Efficiency Sound Insulation : Laminated hollow composite glass + soundproof cavity frame, with sound insulation ≥40dB, effectively blocking high, medium, and low-frequency noise.

• Dual Protection : The PVB laminate layer not only insulates sound but also prevents glass from shattering and splintering, providing both soundproofing and safety protection.

• Excellent Sealing : Multiple-layer stepped sealing structure with soundproof sealing strips, preventing noise penetration through gaps while ensuring waterproof performance.

• Durable and Robust : Thickened aluminum alloy frame with composite glass, impact-resistant and corrosion-resistant, with a service life of over 20 years, suitable for various environments.

• Silent Operation : Noise-dampening hardware components ensure smooth operation with no friction noise, reducing secondary noise interference.

Comparison with Similar Products

Soundproof windows differ significantly from ordinary aluminum alloy windows and energy-saving windows in terms of sound insulation and adaptability, as shown below:

Comparison Item	Soundproof Windows	Ordinary Aluminum Alloy Windows	Energy-saving Windows
Sound Insulation	Excellent, sound insulation ≥40dB, covers all noise frequencies	Poor, sound insulation ≤25dB, blocks only high-frequency noise	Good, sound insulation ≈30dB, primarily for temperature insulation with some soundproofing
Safety Performance	Excellent, laminated glass prevents shattering and has strong anti-theft properties	Average, ordinary tempered glass is prone to breakage and falling	Good, tempered glass is impact-resistant but has moderate anti-theft properties
Suitable Scenarios	Streets, airports, laboratories, and other noise-sensitive environments	Ordinary homes and offices with low noise demands	Homes and offices focused on energy savings

Structure and Design Explanation

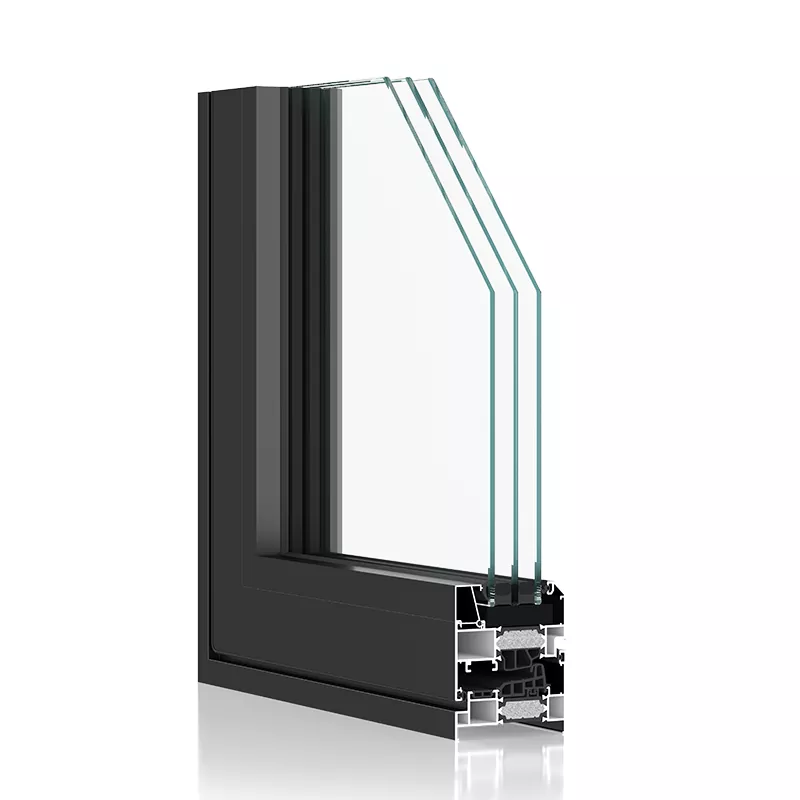

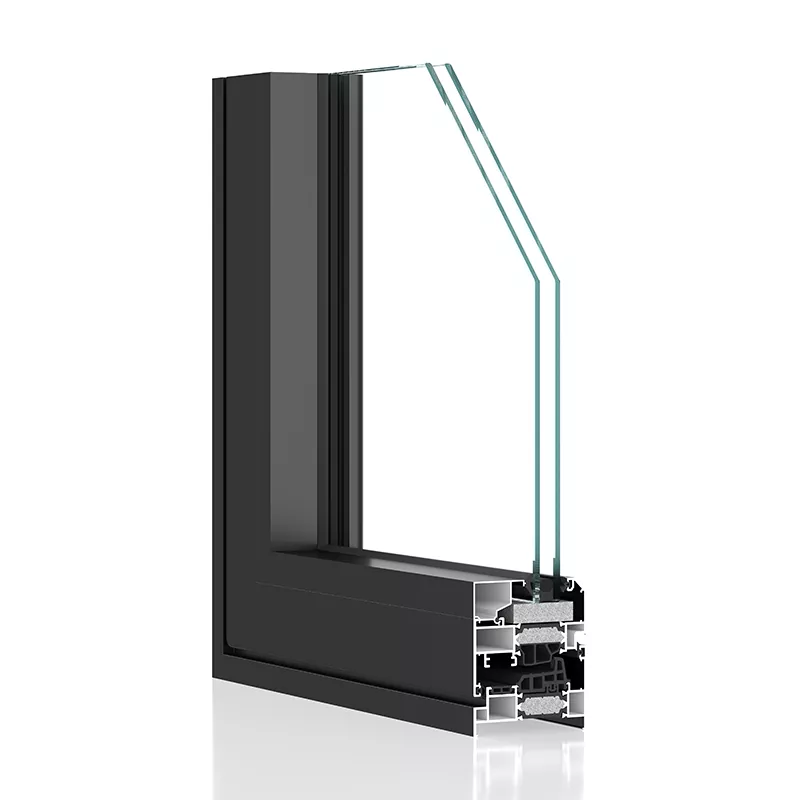

The structure uses "soundproof cavity aluminum alloy frame + laminated hollow composite glass," with the frame filled with soundproof cotton to create a dual soundproof barrier. The glass uses a laminated + hollow composite design, where the PVB laminate layer absorbs mid- and low-frequency noise, and the air gap blocks high-frequency noise, covering all noise frequencies. The frame-to-sash connection uses a stepped sealing structure to prevent noise penetration through gaps while improving water and air tightness.

The design supports two opening methods: casement and sliding windows. Glass thickness and air gap width can be customized according to noise types. The frame color is customizable in various shades to match different decoration styles. The hardware components are selected for quiet operation, and some models can be equipped with anti-theft locks to balance soundproofing, safety, and practicality. The overall structure provides both excellent noise reduction performance and aesthetic appeal.

Procurement and Customization Services

The company offers a one-stop soundproof window customization and procurement service, supporting custom options for opening methods, dimensions, glass laminate thickness, frame color, and hardware components. We provide tailored noise reduction solutions based on your noise environment and requirements, including free on-site measurement, noise detection, and technical explanation services.

Bulk purchases enjoy exclusive discounts, with customized shockproof packaging and nationwide delivery. After-sales service includes a 2-year warranty, with free repairs or replacement of parts due to non-human damage during the warranty period. We also offer lifetime technical consultation and parts replenishment services.

Usage Instructions and Precautions

After installation, check the seal between the sash and frame, the stability of the hardware, and the integrity of the drainage hole cover. Regularly (every six months) clean the sealing strips and remove debris to maintain soundproofing effectiveness.

When cleaning the glass, avoid using sharp objects that could scratch the surface. Use a soft cloth and neutral cleaning agent to wipe laminated glass, and avoid striking the edges of the glass.

Avoid strong impacts on the frame and glass to prevent breakage or deformation that could affect sound insulation and sealing performance.

Regularly inspect sealing strips and soundproof cotton for aging, detachment, or damage. Replace them promptly to maintain noise reduction performance.

Open and close windows gently to avoid excessive wear on the hardware and extend the silent service life.

Frequently Asked Questions

Q: Can soundproof windows block low-frequency traffic noise?

A: Yes. The laminated hollow composite structure is specifically designed to absorb mid- and low-frequency noise, effectively blocking low-frequency noise from traffic, construction, etc., and reducing it to a comfortable range for humans, preventing resonance interference.

Q: Will the sealing performance of soundproof windows decline over time?

A: No, with normal use, the sealing performance will not decline significantly. The sealing strips use weather-resistant EPDM material, which is not prone to aging. Additionally, the frame's sealing structure is designed to be efficient. With regular cleaning and maintenance, the sealing performance can remain excellent for a long time.
