Anti-pinch Automatic Sensor Door
Designed to redefine entryway safety, our Infrared Automatic Sensor Door series combines swift responsiveness with uncompromising protection. For high-traffic environments, the robust Commercial Automatic Sensor Door model handles heavy usage while detecting obstacles in real time. When elegance matters, the Tempered Glass Sensor Door offers a frameless aesthetic with integrated pinch-proof technology. And for versatile architectural demands, our Aluminum Alloy Sensor Door provides a lightweight yet durable solution that never compromises on safety or performance.
The Anti-pinch Automatic Sensor Door employs a dual-sensing matrix combined with an instant-reverse motor mechanism to eliminate finger trapping and collision risks. When the built-in infrared curtain or pressure-sensitive edge detects an obstruction as small as 5 mm, the door stops immediately and retracts within 0.3 seconds. Core specifications and operational parameters are detailed in the tables below, reflecting the door's engineering precision.
| Parameter | Value |
|---|---|
| Opening Speed | 0.15–0.6 m/s (adjustable) |
| Closing Speed | 0.1–0.5 m/s (adjustable) |
| Anti-pinch Sensitivity | ≤5 mm obstruction detection |
| Retraction Time | <0.3 s |
| Motor Type | Brushless DC servo |
| Noise Level | ≤48 dB(A) |
| Max Leaf Weight | 150 kg (per leaf) |
| Power Supply | 100–240V AC, 50/60 Hz |
| Standby Consumption | ≤2.5 W |
| Component | Description |
|---|---|
| Primary Sensor | Time-of-flight infrared, range 0–3.5 m |
| Safety Light Curtain | 8–16 beams, IP54 rated |
| Edge Safety Strip | Wireless impact sensor (optional) |
| Fail-Safe Battery | Lithium-ion backup, 2-hour operation |
| Control Interface | LCD display with configurable parameters |
- Full compliance with ANSI/BHMA A156.10 and EN 16005 safety standards.
- Modular track system supports clear openings from 700 mm to 3000 mm.
- Weather-resistant construction rated for -20°C to +55°C ambient temperature.
- Self-diagnostic mode with error logging and remote monitoring capability.
- Customizable hold-open times, force limits, and activation zones.
- Compatible with access control, motion radars, and push-button activators.
Related Products
Hot Products
Super Energy-saving Glass
Duoping is a reliable manufacture and supplier of Dopin super energy-saving glass, boasting advanced multi-cavity design and strict quality control. It integrates Low-e coating and argon filling for excellent thermal insulation and soundproofing. We offer customized solutions and support wholesale orders, fitting high-energy-saving building procurement needs.
Fluorocarbon Coated Aluminum Alloy Windows
Duoping is a professional manufacturer and supplier, delivering high-quality fluorocarbon coated aluminum alloy windows with advanced three-coat two-bake technology. This product features exceptional weather resistance and long-lasting color, ideal for high-end villas and coastal projects. We support customized designs and welcome wholesale orders, providing premium window solutions for luxury construction procurement.
4SG Insulated Glass
Duoping is a professional R&D, production and supplier of 4SG insulated glass. Relying on the integrated warm-edge sealing tape process, combined with low-emissivity (Low-e) coating and high-purity argon gas filling core technologies, we produce high-end energy-saving glass featuring no thermal bridge, high airtightness and easy installation. As a core material for the renovation of old residential communities and general energy-saving buildings, our products are widely used in residential doors and windows, office building curtain walls, buildings in noise-sensitive areas and other scenarios. With high cost performance and stable performance, our products cover the national market. We sincerely look forward to working with you to provide customized glass solutions for various energy-saving building projects.
Aluminum Alloy Sunroom
Shandong Duoping New Materials Co., Ltd. is a professional R&D, production and supplier of aluminum alloy sunrooms. With years of deep cultivation in the industry, we rely on a large-scale production system and mature manufacturing technology to forge cost-effective products, which are exported to many regions in Europe and America. We sincerely look forward to working hand in hand with you to become your trustworthy long-term partner in China.

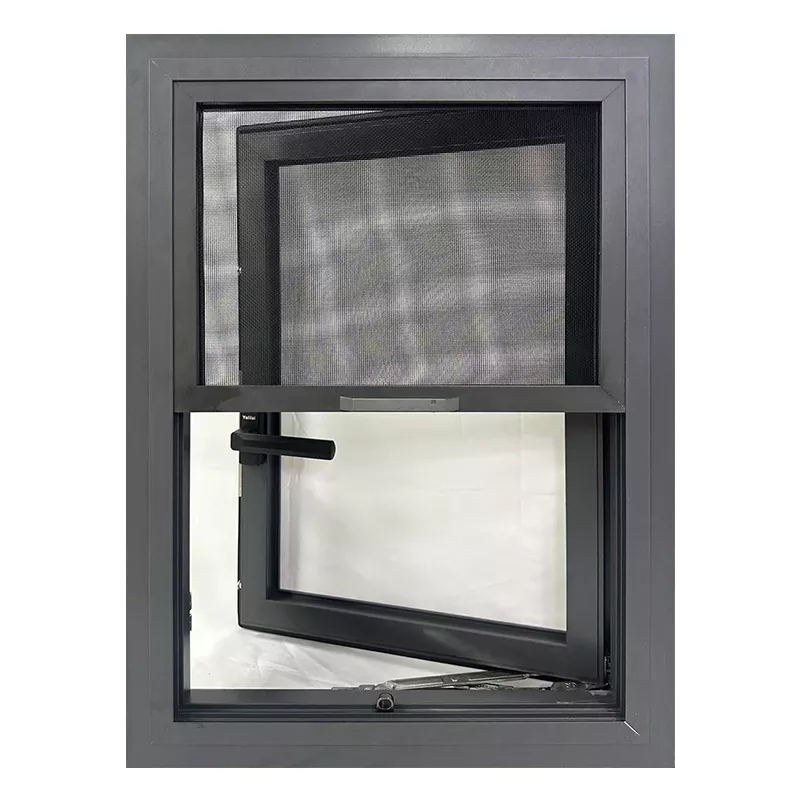

Powder coated Aluminum Alloy Windows
